Protocol encoding functions implementation. More...

#include "tinylor.h"

Include dependency graph for tinylor.c:

Macros
#define	LOR_MAX_UNIT_LIST 256
	The size of the unit ID space scanned when encoding a unit list, i.e. one bit per possible `lor_unit` value (0-255). The protocol's count byte allows at most 255 entries, but valid unit IDs are limited to [1, 0xF0] so a list can never exceed 240 entries in practice.

Functions
void	lor_unit_set_add (lor_unit_set *s, const lor_unit unit)
	Adds a single unit ID to the set. Adding an ID that is already a member has no effect.

void	lor_unit_set_all (lor_unit_set s, const lor_unit u, const size_t us)
	Adds each unit ID in an array to the set.

void	lor_unit_set_clear (lor_unit_set *s)
	Removes every unit ID from the set, leaving it empty. Also serves to initialize a set whose storage has not been zeroed.

void	lor_set_channel (lor_req_s *req, lor_channel c)
	Configures the request to use a single channel, addressed by its 0-based index (index 0 is channel 1 in LOR software). The index is encoded as '0x80 \| index' in the single-channel format, so the controller receives it directly.

void	lor_set_channels (lor_req_s *req, lor_channel first, const uint16_t cbits)
	Configures the request to use a channel set, in the form of a 16-bit bitset of channels, "starting at" the first channel offset used.

void	lor_set_unit (lor_req_s *req, const lor_unit u)
	Configures the request to be sent to, and accepted by, the specified unit. A unit is required for all requests. A magic value of 0xFF may be used to broadcast the request to all units.

void	lor_set_units (lor_req_s req, lor_unit_set units)
	Configures the request to be sent to, and accepted by, every unit in the provided set, using the `LOR_UNIT_ID_LIST` addressing form. This replaces any unit previously configured with `lor_set_unit`. The encoded frame grows by one count byte plus one byte per member.

int	lor_set_effect (lor_req_s req, const lor_effect e, const lor_effect_args_u args)
	Configures the request to apply the specified effect. The effect may require additional arguments, which are provided in the args field as a union. If provided, the args field is copied into the request at which point the caller may safely discard the original args. Any non-NULL arguments will be copied into the request, even if the effect does not require them. This allows future expansion of usable effects without modifying the behavior of the function.

void	lor_set_intensity (lor_req_s *req, const lor_intensity i)
	Configures the request to set the intensity of the lights to the provided value.

void	lor_set_fade (lor_req_s *req, const lor_intensity start, const lor_intensity end, const lor_decisec ds)
	Configures the request to fade from one intensity to another over a specified duration in deciseconds.

static lor_channel_format	lor_get_cset_format (const lor_channel_set *const cset)
	Determines the compressed format of the channel set for encoding.

static int	lor_encode_channel (uint8_t const b, const lor_channel_set const cset)
	Encodes a single-channel set as one byte: the channel's 0-based index with bit 7 set, as expected by the single-channel mode (0x00). Bit 7 carries no information for the controller; it only ensures channel index 0 is not encoded as 0x00, the frame delimiter.

static int	lor_encode_cset (uint8_t const b, const lor_channel_set const cset)
	Encodes a channel set into a buffer.

static int	lor_encode_decis (uint8_t *b, const lor_decisec ds)
	Encodes a decisecond value.

static int	lor_encode_fade_rate (uint8_t b, const lor_effect_args_u args)
	Encodes a fade effect as an intensity delta relative to the duration of the effect in deciseconds.

static int	lor_encode_effect (uint8_t const b, const lor_effect e, const lor_effect_args_u const d)
	Encodes an effect into a buffer, including any required arguments for the effect type.

size_t	lor_write (uint8_t b, const size_t bs, const lor_req_s r, const size_t rs, size_t *wb)
	Encodes and writes up to `rs` requests to the provided buffer `b` as binary data. Requests are first encoded into a scratch buffer to ensure the buffer has enough space to hold the encoded data. The function will attempt to write as many requests as possible to the buffer, up to the provided request count.

lor_intensity	lor_get_intensity (const uint8_t b)
	Encodes a [0,0xFF] value into a roughly equivalent LOR intensity value (precision is lossy) that is compatible with the protocol.

Detailed Description

Protocol encoding functions implementation.

Macro Definition Documentation

◆ LOR_MAX_UNIT_LIST

#define LOR_MAX_UNIT_LIST 256

The size of the unit ID space scanned when encoding a unit list, i.e. one bit per possible lor_unit value (0-255). The protocol's count byte allows at most 255 entries, but valid unit IDs are limited to [1, 0xF0] so a list can never exceed 240 entries in practice.

Function Documentation

◆ lor_encode_channel()

static int lor_encode_channel	(	uint8_t *const	b,
		const lor_channel_set *const	cset
	)

static

Encodes a single-channel set as one byte: the channel's 0-based index with bit 7 set, as expected by the single-channel mode (0x00). Bit 7 carries no information for the controller; it only ensures channel index 0 is not encoded as 0x00, the frame delimiter.

Parameters

b	The buffer to write the channel byte to.
cset	The channel set to encode. Must have a zero offset and exactly one bit set (see lor_get_cset_format, LOR_FMT_SINGLE).

Returns: The number of bytes written to the buffer, always 1.

Note: Caller is responsible for ensuring buffer is at least 1 byte in size.

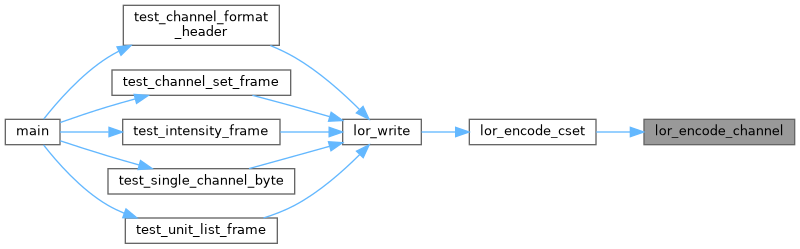

Here is the caller graph for this function:

◆ lor_encode_cset()

static int lor_encode_cset	(	uint8_t *const	b,
		const lor_channel_set *const	cset
	)

static

Encodes a channel set into a buffer.

Parameters

b	The buffer to write the channel set to.
cset	The channel set to encode.

Returns: The number of bytes written to the buffer.

Note: Caller is responsible for ensuring buffer is at least 3 bytes in size.

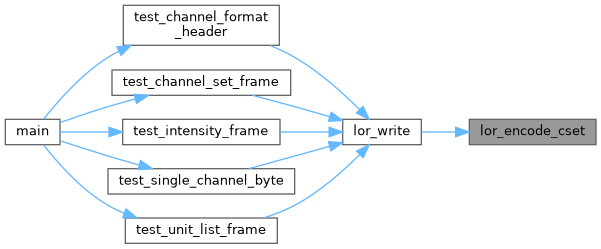

Here is the call graph for this function:

Here is the caller graph for this function:

◆ lor_encode_decis()

static int lor_encode_decis	(	uint8_t *	b,
		const lor_decisec	ds
	)

static

Encodes a decisecond value.

Parameters

b	The buffer to write the decisecond value to.
ds	The decisecond value to encode.

Returns: The number of bytes written to the buffer.

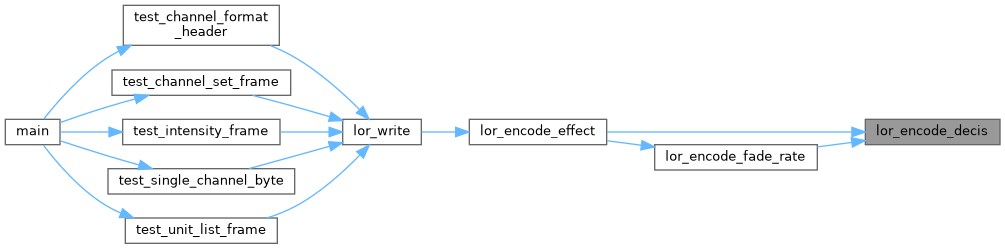

Here is the caller graph for this function:

◆ lor_encode_effect()

static int lor_encode_effect	(	uint8_t *const	b,
		const lor_effect	e,
		const lor_effect_args_u *const	d
	)

static

Encodes an effect into a buffer, including any required arguments for the effect type.

Parameters

b	The buffer to write the effect to.
e	The effect to encode.
d	Optional effect arguments to encode.

Returns: The number of bytes written to the buffer.

Note: Caller is responsible for ensuring buffer is large enough to hold the encoded effect and arguments.

Here is the call graph for this function:

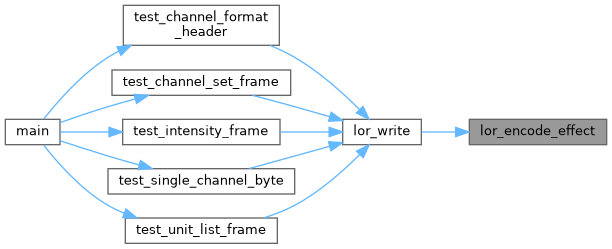

Here is the caller graph for this function:

◆ lor_encode_fade_rate()

static int lor_encode_fade_rate	(	uint8_t *	b,
		const lor_effect_args_u *	args
	)

static

Encodes a fade effect as an intensity delta relative to the duration of the effect in deciseconds.

Parameters

b	The buffer to write the fade value to.

Returns: The number of bytes written to the buffer.

Note: This appears to output values equivalent to the stock configuration. tinylor originally encoded deciseconds as an independent value (i.e. not relative to the intensity values), but this did not visually match the intended behavior.

Here is the call graph for this function:

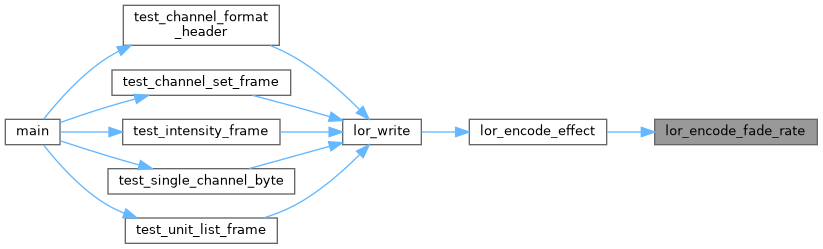

Here is the caller graph for this function:

◆ lor_get_cset_format()

static lor_channel_format lor_get_cset_format ( const lor_channel_set *const cset )

static

Determines the compressed format of the channel set for encoding.

Parameters

cset	The channel set to determine the format of.

Returns: The format byte header of the channel set for protocol encoding.

Here is the caller graph for this function:

◆ lor_get_intensity()

lor_intensity lor_get_intensity ( uint8_t b )

Encodes a [0,0xFF] value into a roughly equivalent LOR intensity value (precision is lossy) that is compatible with the protocol.

Note: This is a default implementation of the lor_intensity_fn type. It operates via a known truth table from protocol documentation. Other or custom implementations may be ideal for your specific use case.

Parameters

b	The byte value to convert.

Returns: The scaled intensity value.

◆ lor_set_channel()

void lor_set_channel	(	lor_req_s *	req,
		lor_channel	c
	)

Configures the request to use a single channel, addressed by its 0-based index (index 0 is channel 1 in LOR software). The index is encoded as '0x80 | index' in the single-channel format, so the controller receives it directly.

Note: The index is reduced modulo 1024. Indices 16 and above are split into a 16-channel bank offset and select the multipart format, which 16-channel controllers do not implement (the request is dropped).

Parameters

req	The request to configure.
c	The 0-based channel index to apply the effect to, less than 1024.

Here is the caller graph for this function:

◆ lor_set_channels()

void lor_set_channels	(	lor_req_s *	req,
		lor_channel	first,
		uint16_t	cbits
	)

Configures the request to use a channel set, in the form of a 16-bit bitset of channels, "starting at" the first channel offset used.

Note: Any bits within the set that (once re-aligned to a 16-bit boundary) exceed the 16-bit window, will be disregarded. Pre-aligned 16-bit bitsets are recommended for best results. You may set the request's cset offset and cbits fields directly.

Parameters

req	The request to configure.
first	The 0-based index of the first channel in the set, i.e. the channel selected by bit 0 of `cbits` (see `lor_channel`).
cbits	The 16-bit bitset of channels to apply the effect to; bit n selects channel index `first` + n.

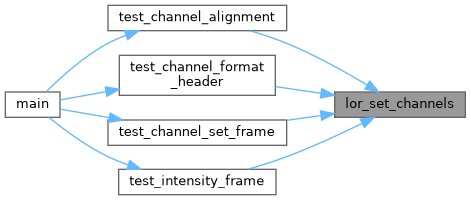

Here is the caller graph for this function:

◆ lor_set_effect()

int lor_set_effect	(	lor_req_s *	req,
		lor_effect	e,
		const lor_effect_args_u *	args
	)

Configures the request to apply the specified effect. The effect may require additional arguments, which are provided in the args field as a union. If provided, the args field is copied into the request at which point the caller may safely discard the original args. Any non-NULL arguments will be copied into the request, even if the effect does not require them. This allows future expansion of usable effects without modifying the behavior of the function.

Parameters

req	The request to configure.
e	The effect to apply.
args	The effect arguments, required if effect is LOR_SET_INTENSITY, LOR_FADE, LOR_PULSE, or LOR_SET_DMX_INTENSITY. Should likely be NULL for other effect types.

Returns: 0 on success, -1 for invalid arguments.

Here is the caller graph for this function:

◆ lor_set_fade()

void lor_set_fade	(	lor_req_s *	req,
		lor_intensity	start,
		lor_intensity	end,
		lor_decisec	ds
	)

Configures the request to fade from one intensity to another over a specified duration in deciseconds.

Note: Equivalent to calling lor_set_effect with LOR_FADE and effect arguments set to the provided start and end intensities and duration.

Parameters

req	The request to configure.
start	The starting intensity.
end	The ending intensity.
ds	The duration of the fade in deciseconds.

Here is the call graph for this function:

◆ lor_set_intensity()

void lor_set_intensity	(	lor_req_s *	req,
		lor_intensity	i
	)

Configures the request to set the intensity of the lights to the provided value.

Note: Equivalent to calling lor_set_effect with LOR_SET_INTENSITY and effect arguments set to the provided intensity.

Parameters

req	The request to configure.
i	The intensity to use. This value should likely pass through a intensity conversion function before being passed to this function.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ lor_set_unit()

void lor_set_unit	(	lor_req_s *	req,
		lor_unit	u
	)

Configures the request to be sent to, and accepted by, the specified unit. A unit is required for all requests. A magic value of 0xFF may be used to broadcast the request to all units.

Parameters

req	The request to configure.
u	The unit to send the request to, or 0xFF to broadcast to all units.

Here is the caller graph for this function:

◆ lor_set_units()

void lor_set_units	(	lor_req_s *	req,
		lor_unit_set *	units
	)

Configures the request to be sent to, and accepted by, every unit in the provided set, using the LOR_UNIT_ID_LIST addressing form. This replaces any unit previously configured with lor_set_unit. The encoded frame grows by one count byte plus one byte per member.

Note: The set is referenced, not copied; it must remain valid and unchanged until the request has been encoded with lor_write. The set must contain at least one unit: an empty set encodes a count byte of 0x00, which terminates the frame before the command byte.

Parameters

req	The request to configure.
units	The set of unit IDs to send the request to.

Here is the caller graph for this function:

◆ lor_unit_set_add()

void lor_unit_set_add	(	lor_unit_set *	s,
		lor_unit	unit
	)

Adds a single unit ID to the set. Adding an ID that is already a member has no effect.

Parameters

s	The set to modify.
unit	The unit ID to add, in [1, 0xF0].

Here is the caller graph for this function:

◆ lor_unit_set_all()

void lor_unit_set_all	(	lor_unit_set *	s,
		const lor_unit *	u,
		size_t	us
	)

Adds each unit ID in an array to the set.

Note: Equivalent to calling lor_unit_set_add once per element of u.

Parameters

s	The set to modify.
u	The array of unit IDs to add, each in [1, 0xF0].
us	The number of unit IDs in `u`.

Here is the caller graph for this function:

◆ lor_unit_set_clear()

void lor_unit_set_clear ( lor_unit_set * s )

Removes every unit ID from the set, leaving it empty. Also serves to initialize a set whose storage has not been zeroed.

Parameters

s	The set to clear.

Here is the caller graph for this function:

◆ lor_write()

size_t lor_write	(	uint8_t *	b,
		size_t	bs,
		const lor_req_s *	r,
		size_t	rs,
		size_t *	wb
	)

Encodes and writes up to rs requests to the provided buffer b as binary data. Requests are first encoded into a scratch buffer to ensure the buffer has enough space to hold the encoded data. The function will attempt to write as many requests as possible to the buffer, up to the provided request count.

Parameters

b	The buffer to write the encoded requests to.
bs	The size of `b` in bytes.
r	The requests to encode, an array of at least `rs` elements.
rs	The number of requests in `r` to encode.
wb	Written byte count accumulator, may be NULL.

Returns: The number of requests successfully written to the buffer. The size of the written requests in bytes is added to wb if it is not NULL.

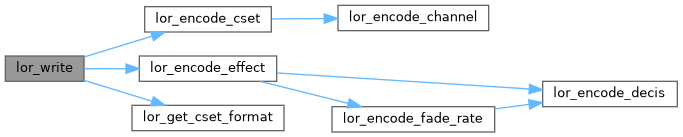

Here is the call graph for this function:

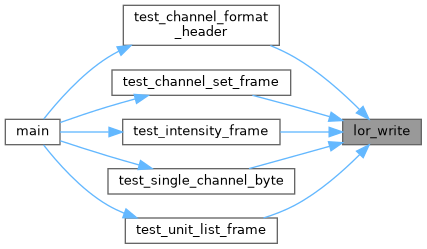

Here is the caller graph for this function:
