seq.c File Reference

FSEQ sequence file loading implementation. More...

#include "seq.h"
#include <assert.h>
#include <stdint.h>
#include <stdlib.h>
#include "tinyfseq.h"
#include "fseq/writer.h"
#include "std2/errcode.h"
#include "std2/fc.h"
#include "comblock.h"

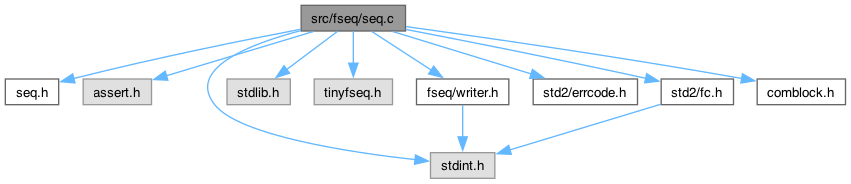

Include dependency graph for seq.c:

Macros
#define	VARHEADER_SIZE   4
	Size of a FSEQ file format variable header in bytes.

Functions
int	Seq_open (struct FC *fc, struct tf_header_t **seq)
	Reads a FSEQ header and initializes the header struct with the sequence's metadata. The caller is responsible for freeing the header.
static int	Seq_readVar (uint8_t **head, const int remaining, struct fseq_var_s *var)
	Reads a variable from the variable table and populates the provided var struct with the variable id, size, and value. The variable value is allocated and must be freed by the caller.
int	Seq_getMediaFile (struct FC *fc, const struct tf_header_t *seq, char **value)
	Retrieves the audio file path from the sequence for playback by searching the FSEQ's variable table for the mf (media file) variable.

Detailed Description

FSEQ sequence file loading implementation.

Macro Definition Documentation

VARHEADER_SIZE

#define VARHEADER_SIZE   4

Size of a FSEQ file format variable header in bytes.

Function Documentation

Seq_getMediaFile()

int Seq_getMediaFile	(	struct FC *	fc,
		const struct tf_header_t *	seq,
		char **	value )

Retrieves the audio file path from the sequence for playback by searching the FSEQ's variable table for the mf (media file) variable.

Parameters

fc	target file controller instance
seq	sequence header for file layout information
value	the value of the mf variable if found, otherwise set to NULL

Returns

0 on success, a negative error code on failure

Here is the call graph for this function:

Here is the caller graph for this function:

Seq_open()

int Seq_open	(	struct FC *	fc,
		struct tf_header_t **	seq )

Reads a FSEQ header and initializes the header struct with the sequence's metadata. The caller is responsible for freeing the header.

Parameters

fc	target file controller instance
seq	the sequence header to populate with the FSEQ metadata

Returns

0 on success, a negative error code on failure

Here is the call graph for this function:

Here is the caller graph for this function:

Seq_readVar()

static int Seq_readVar ( uint8_t ** head, const int remaining, struct fseq_var_s * var )

static

Reads a variable from the variable table and populates the provided var struct with the variable id, size, and value. The variable value is allocated and must be freed by the caller.

Parameters

head	pointer to the current variable table position, updated to the next variable position on return
remaining	the number of bytes remaining in the variable table
var	the variable struct to populate with the read variable

Returns

0 on success, a negative error code on failure

Here is the caller graph for this function:
