comblock.c File Reference

FSEQ compression block loading implementation. More...

#include "comblock.h"
#include <assert.h>
#include <stdint.h>
#include <stdlib.h>
#include <string.h>
#include <zstd.h>
#include "tinyfseq.h"
#include "fseq/fd.h"
#include "std2/errcode.h"
#include "std2/fc.h"

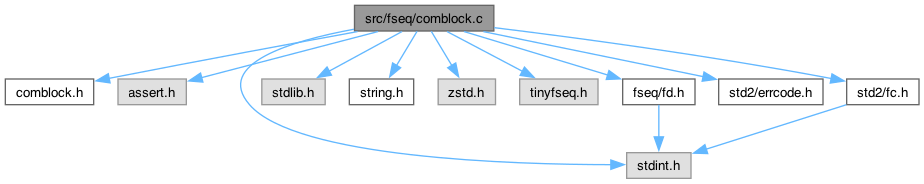

Include dependency graph for comblock.c:

Macros
#define	COMBLOCK_SIZE   8
	Size of a FSEQ file format compression block entry in bytes.

Functions
static int	ComBlock_findAbsoluteAddr (struct FC *fc, const struct tf_header_t *seq, const int index, uint32_t *const cbAddr, uint32_t *const cbSize)
	Calculates the absolute address of the given compression block index and its encoded size.
static int	ComBlock_readZstd (struct FC *fc, const struct tf_header_t *seq, const int index, struct fd_list_s *list)
	Reads the given compression block (by index) from the given file controller and decompresses it using zstd.
int	ComBlock_read (struct FC *fc, const struct tf_header_t *seq, const int index, struct fd_list_s *list)
	Reads the given compression block (by index) from the given file controller and decompresses it (if supported).
int	ComBlock_count (struct FC *fc, const struct tf_header_t *seq)
	Determines the number of compression blocks available within the given sequence file. The FSEQ file header already contains a field, compressionBlockCount, that specifies the number of compression blocks, but other encoding programs are known to write additional zero-sized compression blocks to align write operations. This results in a discrepancy between the header field and the actual number of playable blocks in the sequence file.

Detailed Description

FSEQ compression block loading implementation.

Macro Definition Documentation

COMBLOCK_SIZE

#define COMBLOCK_SIZE   8

Size of a FSEQ file format compression block entry in bytes.

Function Documentation

ComBlock_count()

int ComBlock_count	(	struct FC *	fc,
		const struct tf_header_t *	seq )

Determines the number of compression blocks available within the given sequence file. The FSEQ file header already contains a field, compressionBlockCount, that specifies the number of compression blocks, but other encoding programs are known to write additional zero-sized compression blocks to align write operations. This results in a discrepancy between the header field and the actual number of playable blocks in the sequence file.

Parameters

fc	target file controller instance
seq	sequence file for file layout information

Returns

the number of compression blocks on success or a negative error code on failure

Here is the call graph for this function:

Here is the caller graph for this function:

ComBlock_findAbsoluteAddr()

static int ComBlock_findAbsoluteAddr ( struct FC * fc, const struct tf_header_t * seq, const int index, uint32_t *const cbAddr, uint32_t *const cbSize )

static

Calculates the absolute address of the given compression block index and its encoded size.

Parameters

fc	target file controller instance
seq	sequence file for file layout information
index	index of the compression block to look up
cbAddr	out pointer to the absolute address of the compression block
cbSize	out pointer to the size of the compression block

Returns

0 on success, a negative error code on failure

Here is the call graph for this function:

Here is the caller graph for this function:

ComBlock_read()

int ComBlock_read	(	struct FC *	fc,
		const struct tf_header_t *	seq,
		int	index,
		struct fd_list_s *	list )

Reads the given compression block (by index) from the given file controller and decompresses it (if supported).

Parameters

fc	target file controller instance
seq	sequence file for file layout information
index	index of the compression block to read
list	pointer to the list for storing the decompressed frame data

Returns

0 on success, a negative error code on failure

Here is the call graph for this function:

Here is the caller graph for this function:

ComBlock_readZstd()

static int ComBlock_readZstd ( struct FC * fc, const struct tf_header_t * seq, const int index, struct fd_list_s * list )

static

Reads the given compression block (by index) from the given file controller and decompresses it using zstd.

Parameters

fc	target file controller instance
seq	sequence file for file layout information
index	index of the compression block to read
list	out pointer to the decompressed block data (array of frames) or NULL on failure

Returns

0 on success, a negative error code on failure

Here is the call graph for this function:

Here is the caller graph for this function:
